Support for the Arduino Nano ESP32 board.
Arduino Nano ESP32
Table of Contents
Overview

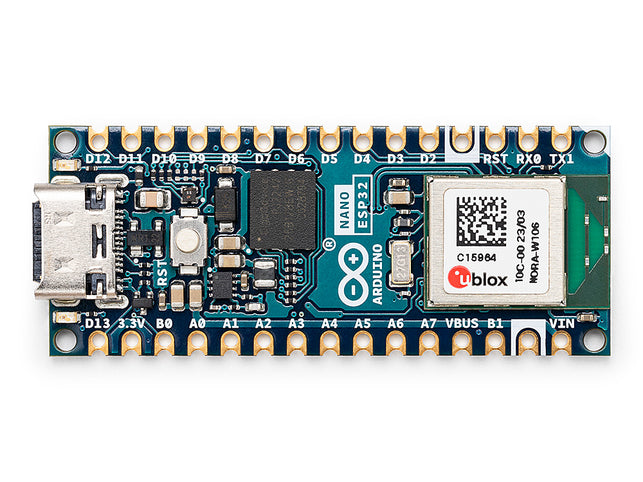

The Arduino Nano ESP32 is an ESP32-S3 board in Arduino Nano format that uses the u-Blox NORA-W106 module.
The main features of the board are:
- ESP32-S3 SoC with 2.4 GHz WiFi 802.11b/g/n and Bluetooth5, BLE
- 8 MByte embedded QSPI RAM
- 16 MByte Flash
- RGB LED with separate colour LEDs
- Native USB and USB Serial JTAG
Hardware
This section describes
- the MCU,
- the default board configuration,
- the board pinout.
MCU
Most features of the board are provided by the ESP32-S3 SoC. For detailed information about the ESP32-S3 SoC variant (family) and ESP32x SoCs, see section ESP32 SoC Series.
Board Configuration
Arduino Nano ESP32 boards have no special hardware on board with the exception of an RGB-LED with separate LEDs for each color.
The board configuration provides:
- 8 x ADC channels (4 x ADC channels if module
periph_i2cis used) - 1 x SPI
- 1 x I2C
- 1 x UART
- 2 x PWM (4 channels on PWM_DEV(0), 3 RGB LED channels on PWM_DEV(1))
The following table shows the default board configuration, which is sorted according to the defined functionality of GPIOs. This configuration can be overridden by application-specific configurations.
| Function | GPIOs | Remarks | Configuration |
|---|---|---|---|
| ADC_LINE(0) | GPIO1 | ADC Channels | |
| ADC_LINE(1) | GPIO2 | ADC Channels | |
| ADC_LINE(2) | GPIO3 | ADC Channels | |
| ADC_LINE(3) | GPIO4 | ADC Channels | |
| ADC_LINE(4) | GPIO11 | N/A if periph_i2c is used | ADC Channels |
| ADC_LINE(5) | GPIO12 | N/A if periph_i2c is used | ADC Channels |
| ADC_LINE(6) | GPIO13 | N/A if periph_i2c is used | ADC Channels |
| ADC_LINE(7) | GPIO14 | N/A if periph_i2c is used | ADC Channels |
| PWM_DEV(0):0 | GPIO6 | PWM Channels | |
| PWM_DEV(0):1 | GPIO8 | PWM Channels | |
| PWM_DEV(0):2 | GPIO9 | PWM Channels | |
| PWM_DEV(0):3 | GPIO18 | PWM Channels | |
| PWM_DEV(1):0 | GPIO46 | LED red | PWM Channels |
| PWM_DEV(1):1 | GPIO0 | LED green | PWM Channels |
| PWM_DEV(1):2 | GPIO45 | LED blue | PWM Channels |
| I2C_DEV(0):SCL | GPIO12 | I2C Interfaces | |
| I2C_DEV(0):SDA | GPIO11 | I2C Interfaces | |
| SPI_DEV(0):CLK | GPIO48 | SPI2_HOST (FSPI) is used | SPI Interfaces |
| SPI_DEV(0):MISO | GPIO47 | SPI2_HOST (FSPI) is used | SPI Interfaces |
| SPI_DEV(0):MOSI | GPIO38 | SPI2_HOST (FSPI) is used | SPI Interfaces |
| SPI_DEV(0):CS0 | GPIO21 | SPI2_HOST (FSPI) is used | SPI Interfaces |
| UART_DEV(0):TxD | GPIO43 | Console (fixed) | UART interfaces |
| UART_DEV(0):RxD | GPIO44 | Console (fixed) | UART interfaces |
For detailed information about the peripheral configurations of ESP32-S3 boards, see section Common Peripherals.
Board Pinout
The following figure shows the pinout as configured by board definition.
An advanced pinout version with front view, back view and some additional information can be found here. The corresponding board schematic can be found here.
Flashing the Device
Since the board does not have a USB-to-Serial chip, the easiest way to flash the board is using the USB Serial/JTAG interface. Just connect the board to your host computer and use the following command:
- Note
- Usually the make system resets the board before flashing to enable the USB Serial/JTAG interface. In some special cases this reset does not work so that the programmer cannot connect to the board and the flashing is aborted with a timeout: This can happen for example if the board is not yet flashed with RIOT or the USB interface is used for another purpose. In this case, restart the board manually in download mode by pressing and releasing the RESET button while pulling down the GPIO0 (B1) pin. In download mode, the USB Serial/JTAG interface is always available.Serial port /dev/ttyACM0Connecting......serial.serialutil.SerialTimeoutException: Write timeout
Alternatively, an external USB-to-Serial adapter can be used. In this case, the USB-to-Serial adapter has to be connected to TxD (GPIO43) and RxD (GPIO44) of the UART0 interface. Before RIOT can be flashed, the board has also to be switched to download mode. To do this, press and release the RESET button while pulling down the GPIO0 (B1) pin. Once the board is in download mode, use the following command to flash RIOT:
For detailed information about ESP32-S3 as well as configuring and compiling RIOT for ESP32-S3 boards, see RIOT-OS on ESP32 SoC Series Boards.
Using STDIO
Since the board does not have a USB-to-Serial chip, the USB Serial/JTAG interface is used by default for the STDIO (module stdio_usb_serial_jtag) which provides an USB CDC ACM interface.
If the USB port is used by the USBUS stack or the tinyUSB stack, implicitly the module stdio_cdc_acm or stdio_tinyusb_cdc_acm is used for the STDIO via the USB CDC ACM interface.
Alternatively, the UART interface could be used with an external USB-to-Serial adapter. Simply add stdio_uart to the list of used modules for this purpose:
Files | |
| file | board.h |
| Board definitions for Arduino Nano ESP32 boards. | |
| file | gpio_params.h |
| Board specific configuration of direct mapped GPIOs. | |
| file | periph_conf.h |
| Peripheral configurations for Arduino Nano ESP32 boards. | |
